Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

12-SIP SMD Module

Number of Pins

12

Operating Temperature

-40°C~85°C

Packaging

Tray

Series

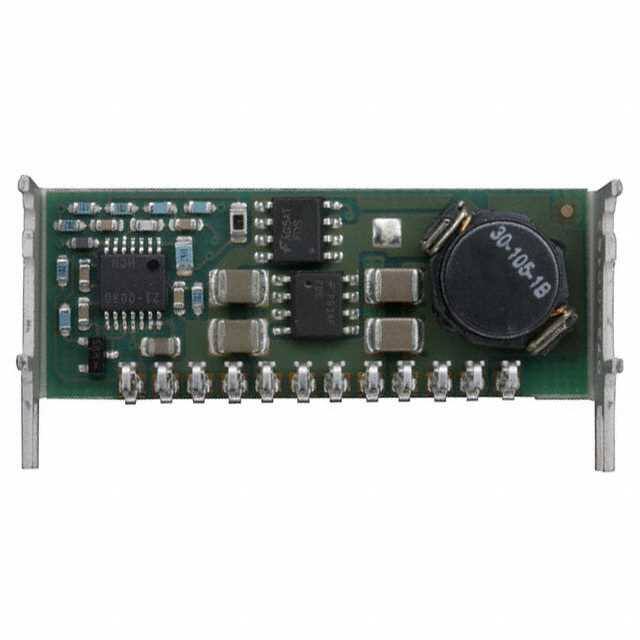

Excalibur™ PT6340

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

12

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Max Power Dissipation

19.8W

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

21.21mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

PT6342

Pin Count

12

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

92%

Voltage - Input (Max)

13.2V

Output Voltage

3.3V

Max Output Current

6A

Voltage - Input (Min)

10.8V

Input Voltage-Nom

12V

Output Current

6A

Control Mode

VOLTAGE-MODE

Switcher Configuration

SINGLE

Switching Frequency-Max

400kHz

Isolation

Non-Isolated

Length

43.43mm

Width

17.1mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
